EVA Sole Injection Moulding Machine

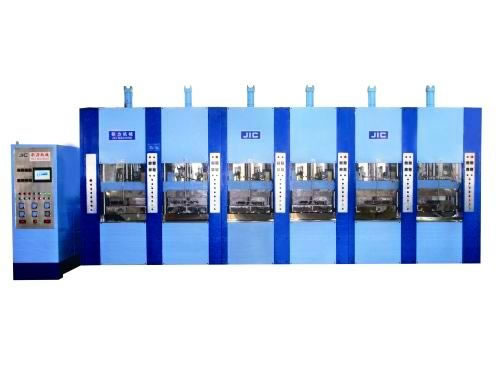

EVA Sole Injection Moulding Machine


1. Injection System
EVA sole injection moulding machine is controlled by PLC and PC system. Counting mechanism and potentiometer are used to work out the accurate quantity of material needed.
2. Mould Closing System
Its mould opening/closing is fast, and mould closing system is working in a hermetic unit.
3. Controlling System
Our EVA sole injection moulding machine uses human-computer interaction interface and touch screen on basis of windows operation system. It is controlled in many aspects, including material rotate speed, injection quantity, infection time, injection temperature, sulfuring time and productivity. In PLC and PC controlling system, the machine is clear in function and convenient in operation.
4. Oil Hydraulic System
Proportional control valve is used to control oil pressure and flow in our EVA sole injection moulding machine.
5. Energy Saving
Water-free heating plates in thermal insulation material can save energy greatly.
6. Others
According to Ergonomics, EVA sole making machine is designed in low operation height. Besides, mould thickness adjusting is stepless, which is suitable to produce moulds in 100-260mm. It uses unique way to produce rubber material or EVA material.

Parameters of JIC9106 EVA Sole Injection Moulding Machine

Item Unit Specifications
Type JIC9102 JIC9106 JIC9108
Raw Material EVA EVA EVA
Workstation 2 6 8
Screw Diameter mm 60 ?60 × 2 ?60 × 2
Screw Rotation Speed r.p.m 0-165 0-165 0-165
Injection Volume (Max.) cm3 920 920 × 2 920 × 2
Rated Injection Pressure MPa 100 100 100
Screw Heating Power KW 12 12 12
Mould Heating Power KW 26 77 102
Oil Hydraulic Motor Power KW 40.5 59 59
Gross Power KW 78 148 173
Clamping Force T 150 150 150
Mould Size (Max.) mm 290 × 550 290 × 550 290 × 550
Mould Height mm 100-260 100-260 100-260
Machine Size mm 4180 × 4600 × 2865 8480 × 4600 × 2865 10000 × 4600 × 2865
Gross Weight kg 9000 23000 28000
Our company is located in the famous Shoe-Made City of China. Products of Jinjiang Jili Machine are sold widely at home and abroad. The foreign customers are mainly from Bengal, Indonesia, Vietnam, Pakistan, Russia, Brazil and countries in Central Asia. If you want to EVA sole making machine, contact us please.
