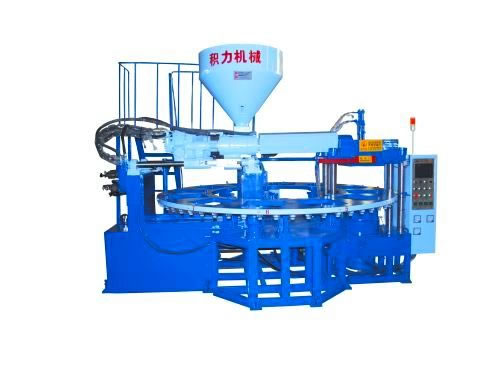

PVC Crystal Sandal Injection Machine

Introduction

PVC crystal sandal injection machine is specialized in production of PVC crystal shoes. In the producing process, industrial computer-human interaction interface is applied. PVC crystal sandal injection machine uses PLC to control operations, and data is displayed on touch screen. Double proportion hydraulic system controls injection pressure and flow, which makes it reasonable and convenient to operate and helps to keep the stable product quality. Digital measurement makes operations accurate.

Parameters of JIC712S PVC Crystal Sandal Injection Machine

Item	Unit	Specification
Type		JIC712S
Raw Material		PVC
Workstation		12
Injection Volume (Max.)	cm3	475
Rated Injection Pressure	MPa	120
Heating Power	KW	8
Limit of Temperature	Point	4
Screw Rotation Speed	r.p.m	0-150
Screw Diometer	mm	θ55
Motor Power	KW	15
Clamping Force	T	80
Mould Size (Max.)	mm	450 × 220 × 300
Machine Size	mm	5000 × 4000 × 2300
Gross Weight	kg	7000

Reasonable layout and designing of the PVC crystal sandal injection machine make the operations easy. The machine can be manipulated by workers who are not professors. Complete automatic controlling benefits labor saving. Lanteky Co. looks forward to a long-term mutual-benefit commercial cooperation with you.
