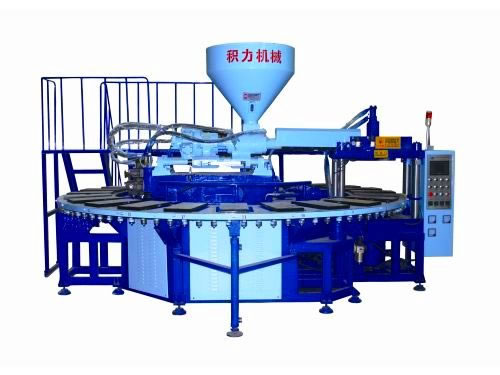

PVC Blowing Shoes Injection Machine

PVC Blowing Shoes Injection Machine


1. Products by injection blowing machine are soft and comfortable. Compared with traditional machine, this machine can reduce weight of its product by 20%-30%.
2. Commixture of old material and new material is applicable in our PVC shoes injection machine, and its products are of equal quality with those by unmixed new material.
3. Co-operation of oil pressure controlling, electric appliances, machineries and pneumatic system brings larger production with lower energy consuming and labor power.
4. Exact designing of machine helps to accommodate large-size moulds. Our PVC shoes injection blowing machine applies cooling system to advance quality of shoe products.
5. All operations are controlled by PLC in computer-human interaction interface, thus the process is accurate and manipulation is easy.
6. Protection switches are applied to insure security of manipulator and machine.


1. PVC shoes injection blowing machine is in double proportional hydraulic controlling systems, which increases its function and stability. High quality of its products is promised with co-monitoring for injection pressure and injection flow.
2. This machine realizes complete automation. With modern automatic expanding equipments, labor power is saved and operation is more accurate.

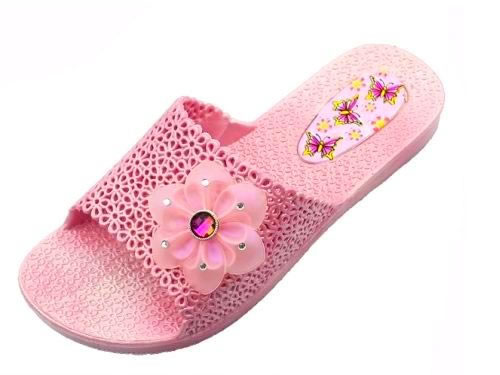

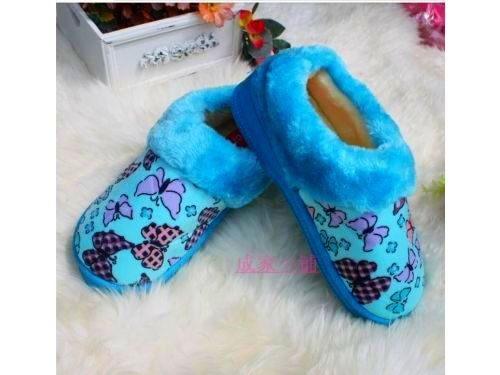

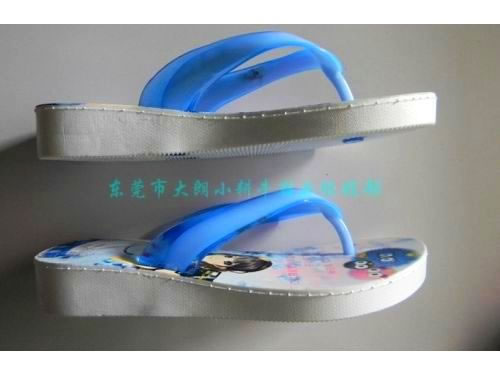

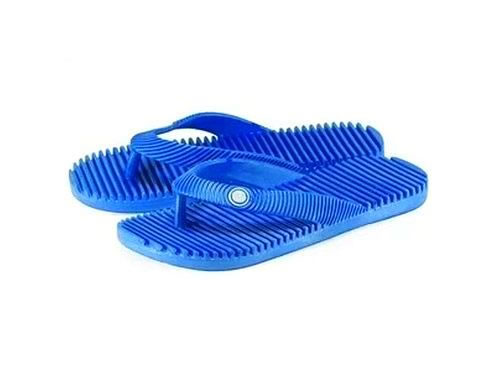

3. Injection blowing machine is applied in production of all kinds of PVC shoes, such as sandals, slippers and PVC soles.
4. A cooling circulatory system is applied to advance cooling capacity and product quality.
5. All professional operations, such as injection, material supply, disc rotation, clamping, etc, are programmed by controlling system. It can promise co-ordination of all parts.


Item Unit Specification (A) Specification (B)
Type JIC724A JIC724B
Raw Material PVC PVC
Workstation 24 24
Injection Volume (Max.) cm3 770 770
Rated Injection Pressure MPa 75 75
Heating Power KW 7 7
Limit of Temperature Point 4 4
Screw Rotation Speed r.p.m 0-150 0-150
Screw Diameter mm θ70 θ70
Motor Power KW 19 19
Clamping Force T 60 60
Mould Size (Max.) mm 460 × 220 × 300 460 × 220 × 300
Mould Height mm 135-300 50-300
Machine Size mm 4050 × 4050 × 2250 4050 × 4050 × 2250
Gross Weight kg 6500 6500

Jili machines have gained good reputations both at home and abroad by virtue of high-quality, effective and considerate services. Its products are widely sold to countries like Bengal, Indonesia, Vietnam, Pakistan, Russia, Brazil and countries in Central Asia. We offer various shoe injection moulding machines, shoe making auxiliary equipments and shoe moulds. To know more about our products, contact us please.
