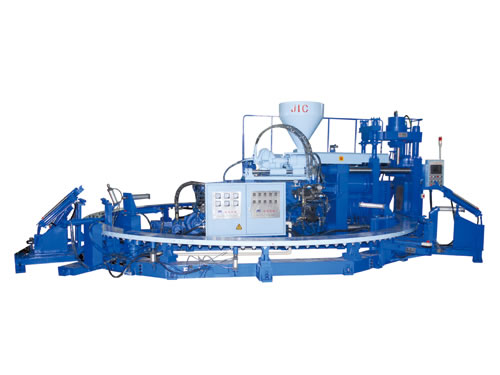

Single Color Rotary PVC Boot Injection Machine

Single Color Rotary PVC Boot Injection Machine

Introduction

1. Components
Single color rotary PVC boot injection machine is mainly composed of clamping system, injection system, controlling system, hydraulic system and disc feeder.
2. Products by Machine
Products by one color rotary boot injection machine are PVC rain boots for adults/children and PVC safety rain boots (height of rain boots is below 400 mm).

Advantages

1. Our company shares one of the largest sale volumes of rotary PVC boot injection machine in China. Our rotary boot making machine can produce PVC rain boots for adults/children and PVC safety rain boots. Our rotary PVC boot injection machines are popular for their high mechanical strength, powerful clamping system and subtle transformation, etc.
2. The gland system works with single cylinder, which makes pressure high and products well-distributed with little fins. Servo motor is selectable for rotary PVC boot injection machine, which helps reduce noise and electric energy consumption by 30%.
3. PVC boot making machines are controlled with PLC system and data is displayed in touch screen, which realizes industrial human-computer interface operation.
4. Pressure and flow are adjustable in double proportional hydraulic systems. It advances production stability through accurate data and makes operation on hydraulic system easier.
5. The one color rotary PVC boot injection machine is rationally designed and easy to operate. It can be operated even without professors.
6. Mechanical arm is attached to this single color rain boot machine to promise a whole automatic process.

Parameters of JIC612 Single Color Rotary PVC Boot Injection Machine


Item Unit Specification
Type JIC612
Raw Material PVC
Workstation 12
Injection Volume (Max.) cm3 1130
Rated Injection Pressure MPa 52
Heating Power KW 8
Limit of Temperature Point 4
Screw Rotation Speed r.p.m 0-150
Screw Diameter mm 90
Motor Power KW 22
Clamping Force T 250
Mould Size (Max.) mm 680 × 360 × 200
Machine Size mm 5800 × 5050 × 2450
Gross Weight kg 15000
Jili machines have gained good reputations both at home and abroad by virtue of its high-quality, effective and considerate services. Our products have been widely sold to countries like Bengal, Indonesia, Vietnam, Pakistan, Russia, Brazil and countries in Central Asia. If you want to know more about us, contact us please.
