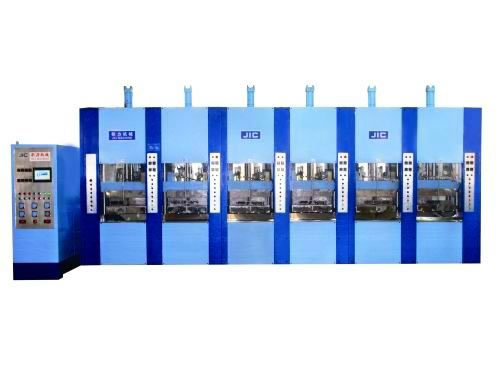

EVA Sandal Injection Machine

EVA Sandal Injection Machine


1. Injection System
EVA sandal injection machine is run under PLC and PC systems. Counting mechanism and potentiometer are applied to count accurate material quantity. EVA sandal injection moulding machine is driven by linear sliding rail and broke motor, and it moves fast by controlling of frequency converter. Location device of EVA sandal injection machine applies rotary encoder to inspect the exact location.
2. Mould Closing System
EVA sandal injection machine works has highly efficient mould opening and closing systems and its mould closing system is in a hermetic unit.
3. Controlling System
It applies human-computer interaction interface and touch screen on basis of windows operation system. Our EVA sandal injection machine realizes real-time controlling in producing process, including material rotate speed, injection quantity, infection time, injection temperature, sulfuring time and productivity. In PLC and PC controlling system, EVA sandal injection moulding machine is clear and easy to manipulate.
4. Oil Hydraulic System
Proportional control valve to control oil pressure and flow is applied by EVA sandal injection machine.
5. Energy Saving
Water-free heating plates in thermal insulation material reduce energy consumption.
6. Others
According to Ergonomics, EVA sandal injection machine is designed in low operation height. Apart from this, stepless mould thickness adjusting is applied to produce moulds in thickness of 100-260 mm.

Parameters of JIC9106 EVA Sandal Injection Moulding Machine

Item Unit Specifications
Type JIC9102 JIC9106 JIC9108
Raw Material EVA EVA EVA
Workstation 2 6 8
Screw Diameter mm 60 Ø60 × 2 Ø60 × 2
Screw Rotation Speed r.p.m 0-165 0-165 0-165
Injection Volume (Max.) cm3 920 920 × 2 920 × 2
Rated Injection Pressure MPa 100 100 100
Screw Heating Power KW 12 12 12
Moulding Heating Power KW 26 77 102
Oil Hydraulic Motor Power KW 40.5 59 59
Gross Power KW 78 148 173
Clamping Force T 150 150 150
Mould Size (Max.) mm 290 × 550 290 × 550 290 × 550
Mould Height mm 100-260 100-260 100-260
Machine Size mm 4180 × 4600 × 2865 8480 × 4600 × 2865 10000 × 4600 × 2865
Gross Weight kg 9000 23000 28000
Our company offers considerate services. To check the quality of our shoe-making machines, customers can use EVA sandal injection machine to mould any product according to samples they want. Flimsy fittings are freely attached to every machine in case that old ones go wrong or need to be changed immediately. Once machine is received, we will assign a technician to install the machine and train staff to use it if customer requests.
